Specification |
|
Product Model |
ISS220G |
ISS180G |
|
Basic Configuration |
|

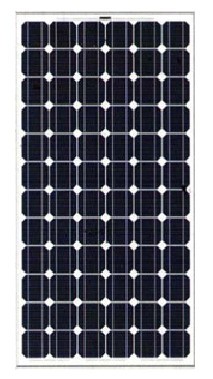

PV Moudle |
220WP |
180WP |
|

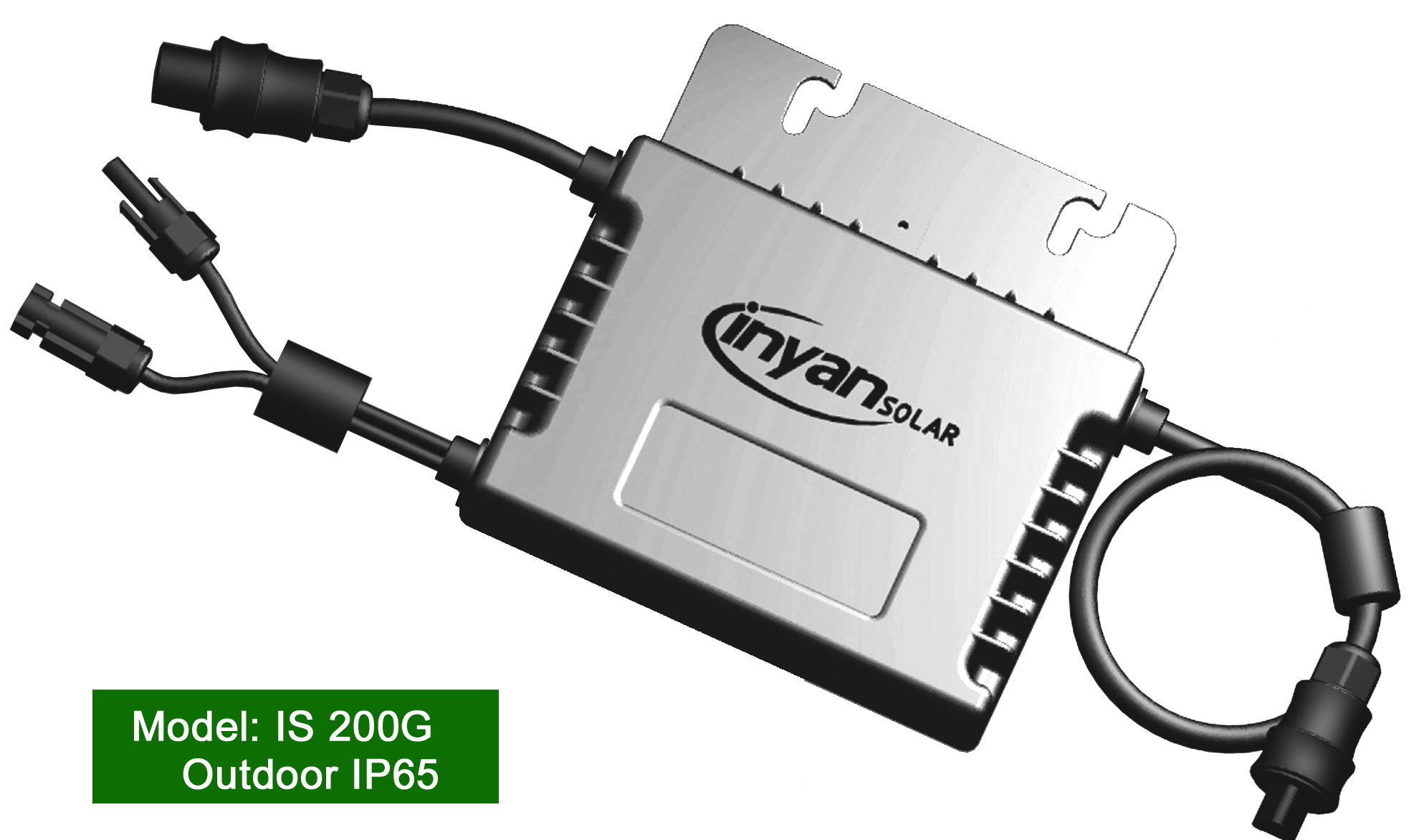

Inverter |
IS200G |
IS160G |
|
System Box |
Aluminium Alloy Box |
Aluminium Alloy Box |
|
Installation Accessories |
Cables, Connection & Racking |
Cables, Connection & Racking |
|
Basic Technical Parameter |
|
Nominal Power Output |
200W （Optional） |
160W （Optional） |
|
Nominal Output Voltage |
110Vac/230Vac （Optional） |
110Vac/230Vac （Optional） |
|
Allowable Output Voltage |
80～140Vac/180～260Vac（Optional） |
80～140Vac/180～260Vac（Optional） |
|
Nominal Output Frequency |
50Hz/60Hz |
50Hz/60Hz |
|
Allowable Output Frequency |
47~51.5Hz/57~61.5Hz |
47~51.5Hz/57~61.5Hz |
|
Total Harmonic Distortion(THD) |
<3%（Nominal Power Output） |
<3%（Nominal Power Output） |
|
Power Factor |
≥0.99（Nominal Power Output） |
≥0.99（Nominal Power Output） |
|
Anti-Island Protection |
Yes |
Yes |
|
Peak Inverter Efficiency |
≥94% |
≥94% |
|
Protective Class |
IP65 |
IP65 |
|
Power Consumption at Night |
0W |
0W |
|
Cooling |
Self-Cooling |
Self-Cooling |
|
Operating Temperture Range |
-25～+60℃,Humidity:0~95%Non-Condensing,High Altitude below 3000M |
-25～+60℃,Humidity:0~95%Non-Condensing,High Altitude below 3000M |
|
Display |
LED |
LED |
|
Communication |
RS485 |
RS485 |
|
Noise |
No |
No |
|
Dimension |
1670x992x50(MM) |
1580x808x35(MM) |
|
Weight |
21.8(KGS) |
15(KGS) |
