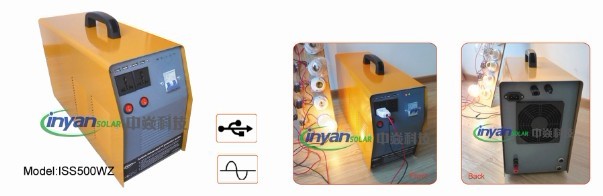

Model |
ISS500Z |
|
System Specification: |
|
|
Rated Output Power |
500W |
|
Solar Panel Power |
18V 100W(50W*2) |
|
Solar Panel Charging Time |
9 hours effective sunlight |
|
Battery Capacity |
12V 50AH Lithium battery |
|
AC Output |
AC 110V/220V/230V 50Hz/60Hz |
|
AC Output Waveform |
Pure sine wave |
|
AC Output Socket |
English \ German \ French \ Australian \ American \ Universal |
|
DC Output（USB Interface） |
5V (500mA) |
|
Peak Inverter Efficiency |
95% |
|
Overload Protection |
Yes |
|
Under-voltage Alarm |
Yes |
|
Overheat Protection |
Yes |
|
Short-circuit Protection |
Yes |
|
Battery Power Indicator |
Yes |
|
|
Yes |
|
External Battery |
No |
|
Accessories |
PV connectors 2 pairs (Optional) |
|
External battery cables 2pcs (Optional) |
|
Certificate |
CE & RoHS |
|
Mechanical Data: |
|
|
|
L375*W150*H320 |
|
|
13 |
|
Appearance Color |
White + Green |
|
|
L640*W530*H30 |
|
Net Weight of Solar Panel (kg) |
4.5 |
|
Dimensions of Battery (mm) |
L190*W140*H132 |
|
Net Weight of Battery (kg) |
6.5 |
