Model: ISS1500~5000Z |
Uninterrupted PV power system |
|
| |
Uninterrupted PV power system:
|

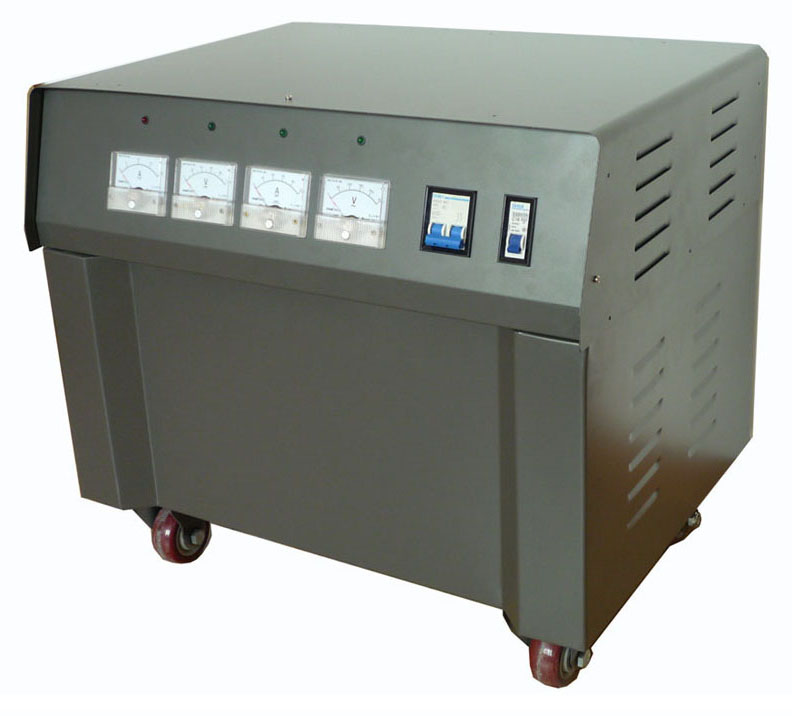

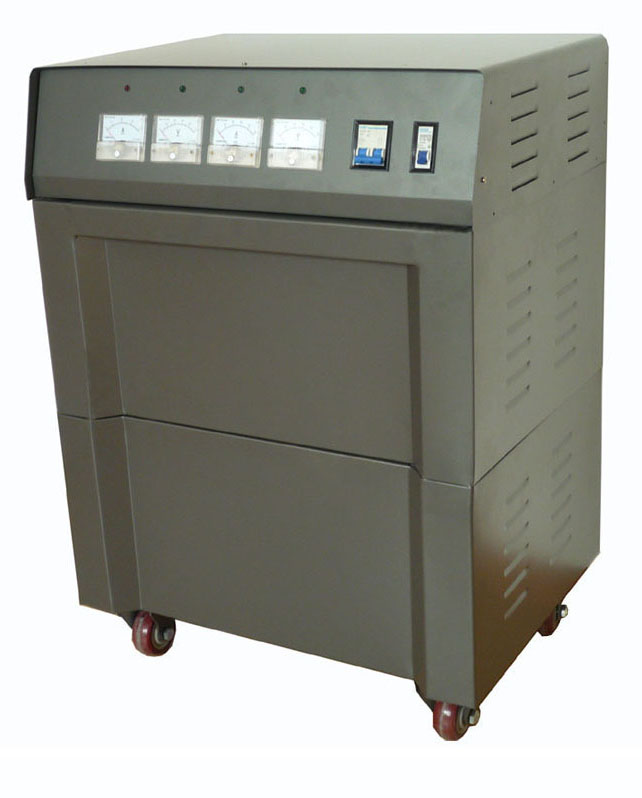

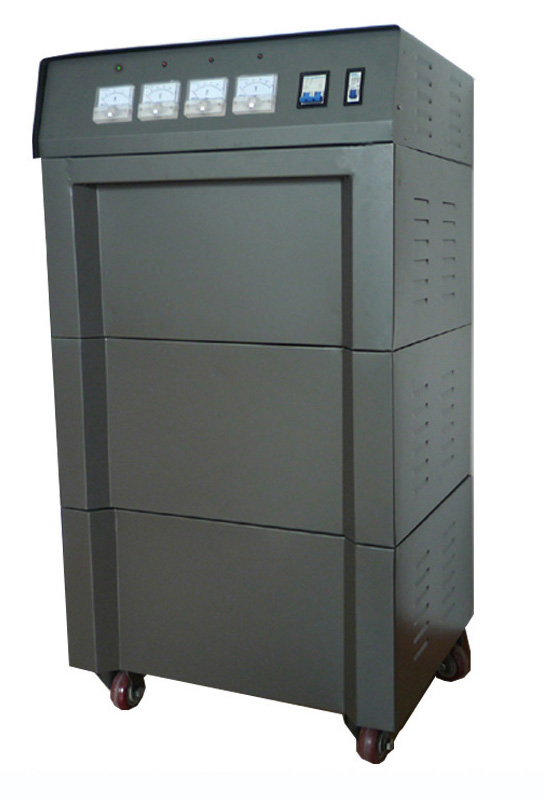

Product image(for reference only): |
|
|
|
|
|

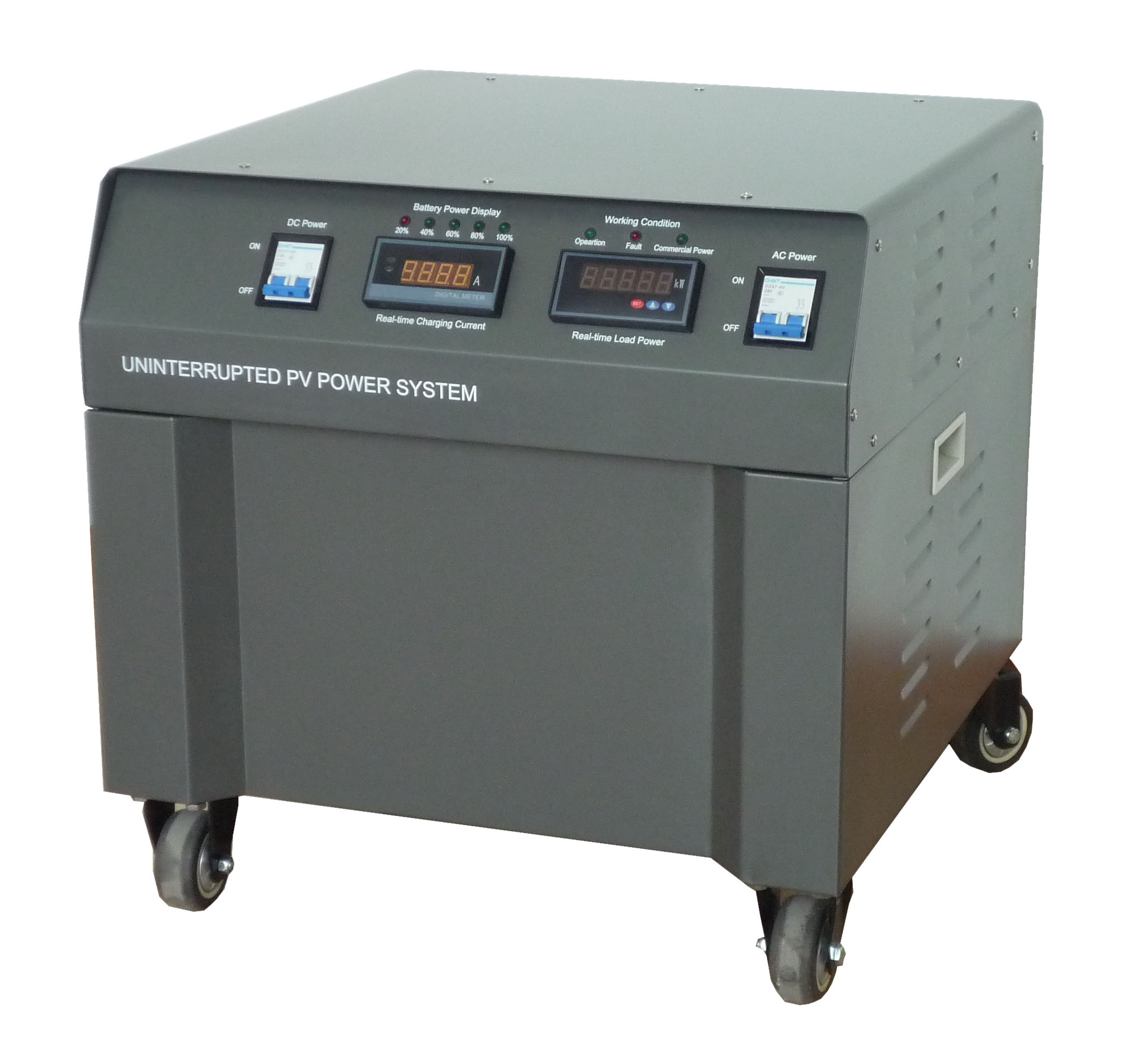

ISS1500Z |

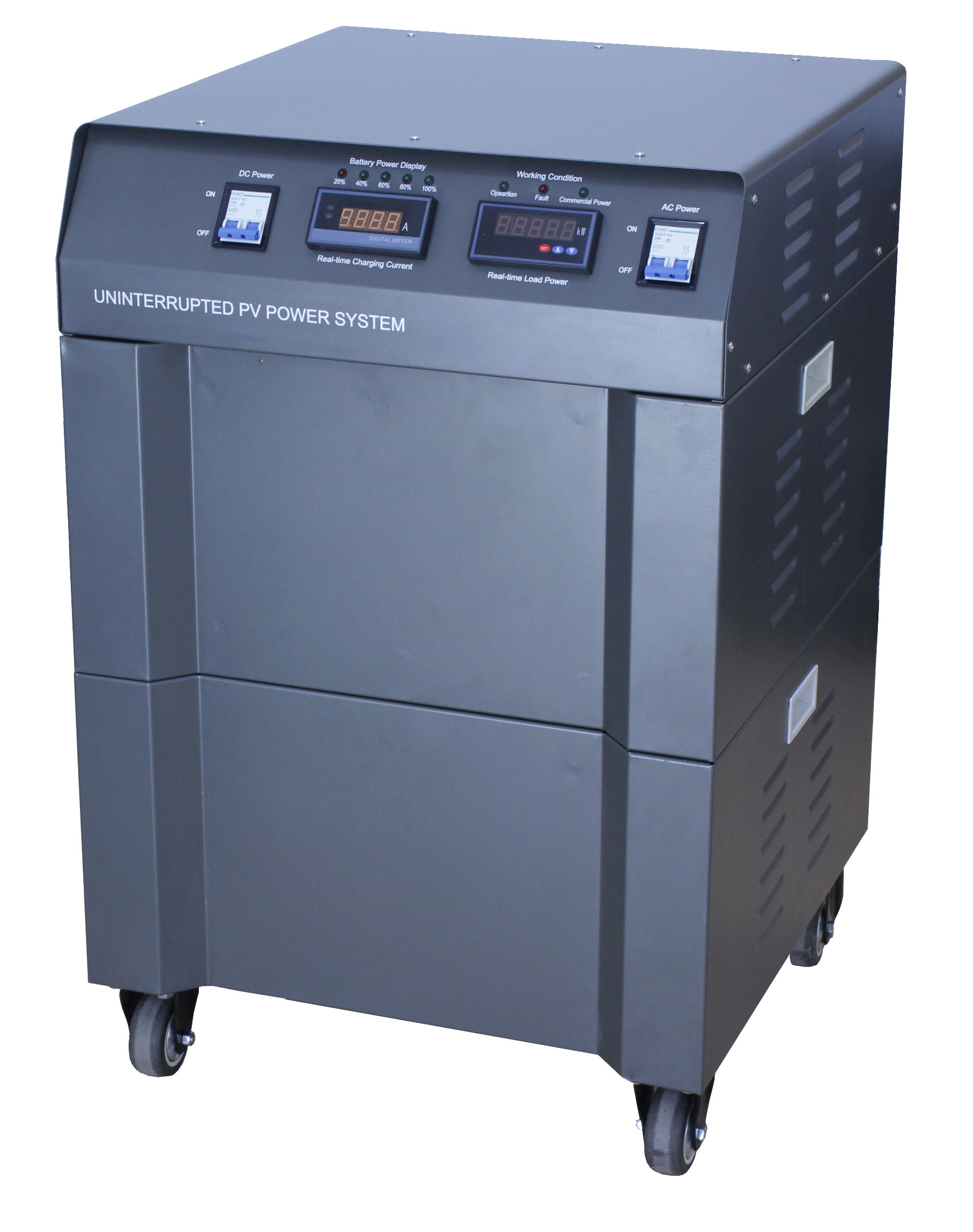

ISS3000Z |

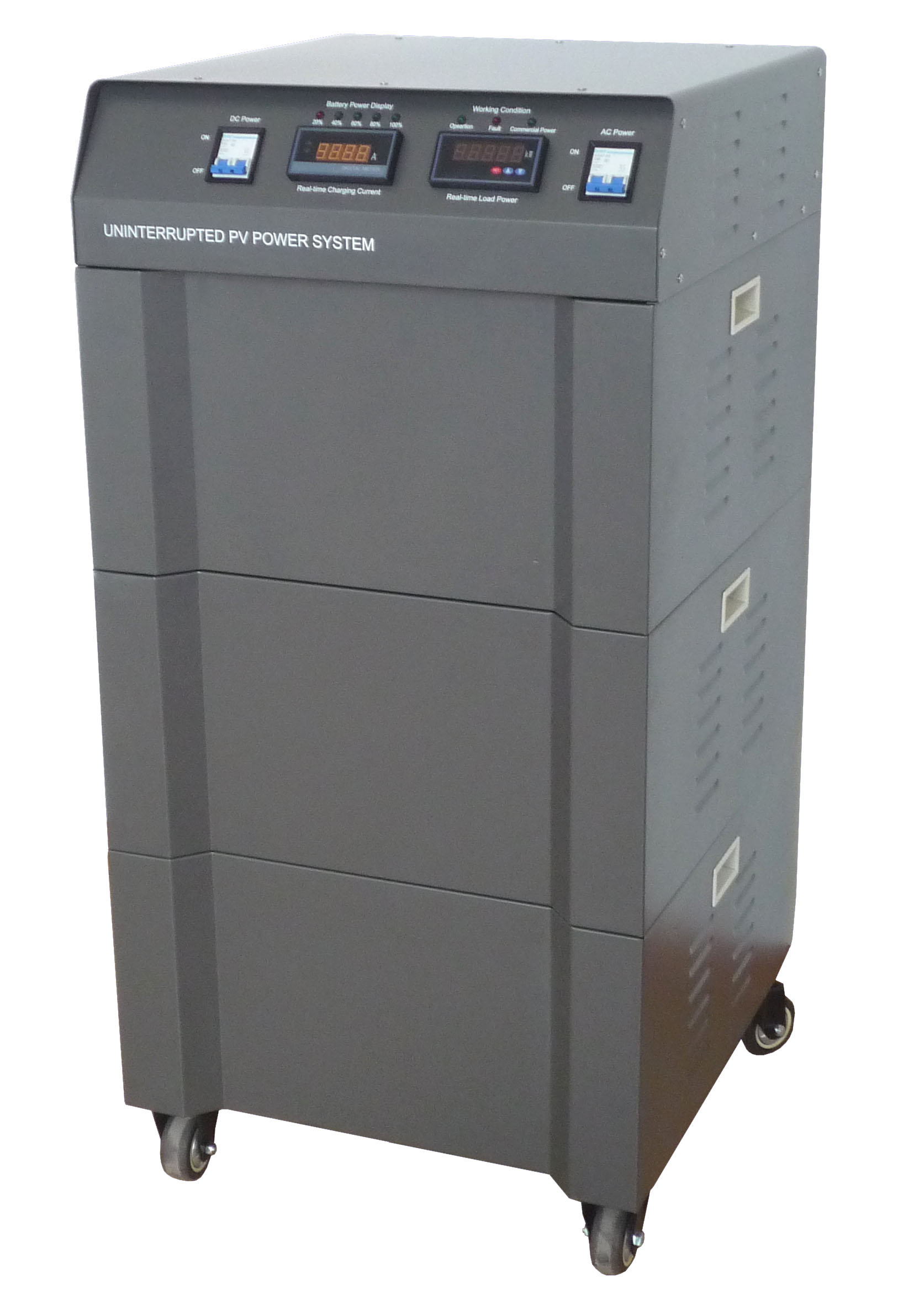

ISS5000Z |
|
Features: |
1. Output Pure Sine Wave |
|
2. PV power generation preferred |
|
3. Automatic switch between PV power and AC electricity |
|
4. Battery power display |

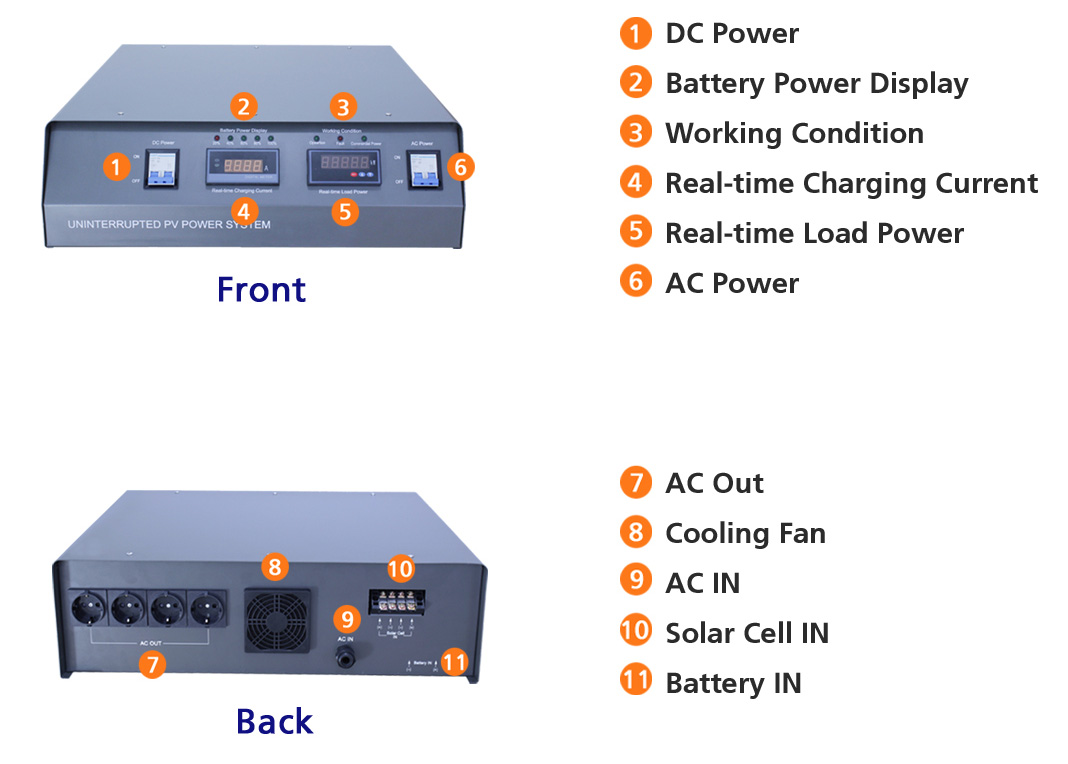

Function of System Box
Technical Data:
|
Model |
ISS1500Z |
ISS3000Z |
ISS5000Z |
|
AC Output Power |
1500W |
3000W |
5000W |
|
Output Waveform |
Pure Sine Wave |
|
|
220V ± 3% or 110V ± 3% |
|
Precision of Output Frequency |
50Hz ± 3Hz or 60Hz ± 3Hz |
|
Power factor |
0.99 |
|
|
120%,30 seconds |
|
Over Voltage Protection |
>29V |
>58V |
>58V |
|
Low Voltage Protection |
<19V |
<40V |
<40V |
|
Peak power efficiency |
>94% |
|
switching time between PV power and AC electricity |
<20ms |
|
Certificate |
CE |
|
Operational Environment: |
|
Operating Temperature Range |
-10 ～ 55℃ |
|
Relative Humidity |
0 ~ 90% |
|
Operating Altitude |
0 ~ 4,000m |
|
Standard Configuration details: |
|
No. |
What’s included |
ISS1500Z |
ISS3000Z |
ISS5000Z |
|
1 |
Mainframe box |
1PC L550*W545*H163 (mm) |
|
2 |
Cell box |
1PC |
2PCS |
3PCS |
|
L550*W545*H283 (mm) |
|
3 |
Wheel |
4PCS (Dia. 3 inch---Mounting H105mm) |
|
4 |
Inverter |
1500W |
3000W |
5000W |
|
5 |
Controller |
24V/45A |
48V/60A |
48V/60A |
|
6 |
Photovoltaic Panel |
1000W |
2000W |
2800W |
|
26.2V , 7.63A |
26.2V , 7.63A |
26.2V , 7.63A |
|
200W x 5 |
200W x 10 |
200W x 14 |
|
L1482*W992*H50 (mm) |
|
7 |
Gel Battery |
24V 140Ah |
48V 140Ah |
48V 210Ah |
|
12V/70Ah x 4 |
12V/70Ah x 8 |
12V/70Ah x 12 |
|
L330*W173*H169(mm) Total H174mm/22.5kg |
|
Mechanical Data: |
Dimension of System box (mm) |
L550*W545*H551 |
L550*W545*H834 |
L550*W545*H1117 |
|
Weight of System box (kg) |
35 |
50 |
67 |
Power supply:
|
Rated Output Power |
1500W |
3000W |
5000W |
|
Electric Appliances |
Television 1 set |
Television 2 sets |
Television 2 sets |
|
Refrigerator 1 set |
Refrigerator 1 set |
Refrigerator 1 set |
|
Computer 1 set |
Computer 2 sets |
Computer 2 sets |
|
Fan 2 sets |
Fan 2 sets |
Fan 2 sets |
|
Lighting 20W 2 pcs |
Lighting 20W 5 pcs |
Lighting 20W 5 pcs |
|
Load Power(approx.) |
400W |
800W |
800W |
|
Service Time |
6 H |
7 H |
10 H |
Note: The data is only for reference. The specific time will be affected by load, the charge efficiency or aging of battery, ect. | |
|
|
|
